    Touch Screen Horizontal Tension Tester Tensile Test Machine

    Ask Lasest Price
    Brand Name : ZL
    Model Number : ZL-8005A
    Certification : CE,ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 60 Sets
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

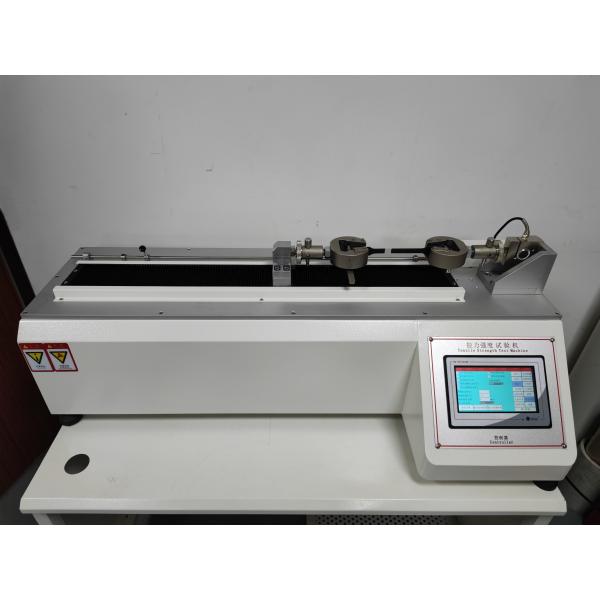

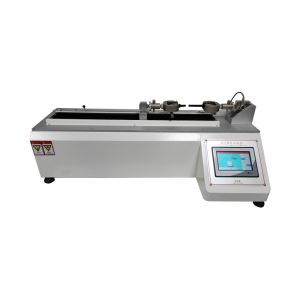

    Touch Screen Horizontal Tension Tester Tensile Test Machine

    Touch Screen Horizontal Tension Tester Tensile Test Machine


    The Microcomputer-Controlled Horizontal Tensile Testing Machine adopts the characteristics of hydraulic force, computer automatic data collection, printing results, convenient operation, high test accuracy, and stable force. It can be used for stretching, tensile shearing, and tearing of metal and non-metal materials. And other mechanical performance tests, which can meet various test methods and standards such as ISO and GB. This equipment is widely used in the wire and cable industry and quality inspection institutions at all levels.


    Technical Parameters:

    Capacity Option100KG
    Measurement Accuracy±1%
    Resolution1/200000
    Test Speed0~300 mm/min
    Effective Stroke600mm
    Test Space120 mm
    Units of Forcekgf, gf, N, kN, lbf
    Stress UnitMPa, kPa, kgf/cm2, lbf/in2
    Stop ModeLeft and right limit safety setting, test piece breakpoint sensing
    Result OutputMiniature printer
    PowerAdjustable speed motor
    OptionalTension clamp (conventional)
    Machine WeightAbout 40 KG
    Power Supply1PH, AC220V, 50/60Hz

    Test Screen:
