ZL-8006C Computer Servo Universal Material Testing Machine is a new type of material testing machine combining electronic
technology and mechanical transmission. It has wide and accurate
loading speed and force measuring range, high precision and
sensitivity for load and displacement measurement and control, and
can also carry out automatic control test of equal speed loading
and equal speed displacement. With simple and convenient operation,
it is especially suitable to be a testing instrument for
controlling product quality on production lines. This series of
models is mainly suitable for testing non-metallic and metallic
materials with a test load of less than 50KN.
The Main Function:
It is mainly suitable for testing metal and non-metal materials,
such as rubber, plastic, wire and cable, fiber optic cable, seat
belt, safety belt, leather belt composite material, plastic
profile, waterproof coil, steel pipe, copper material, profile,
spring steel, Bearing steel, stainless steel (and other
high-hardness steel), castings, steel plates, steel strips, and
non-ferrous metal wires have tension, compression, bending,
shearing, peeling, tearing, and two-point extensions in
high-temperature environments (need to be ordered separately)
Extensometer) and other tests.
Main Feature:
Imported photoelectric encoder is used for displacement
measurement, the controller adopts embedded single-chip
microcomputer structure, built-in powerful measurement and control
software, which integrates measurement, control, calculation and
storage functions. It has the function of automatically calculating
stress, elongation (extensometer needs to be added), tensile
strength and elastic modulus, and automatically counts the results;
automatically records the force value or elongation of the maximum
point, breaking point, and designated point; uses a computer for
testing The process and test curves are dynamically displayed, and
data processing is performed. After the test, the graph processing
module can be used to zoom in on the curve for data re-analysis and
editing, and the report can be printed. The product performance has
reached the international advanced level.
Corresponding Standard :
ISO6892-1-2009, ISO10113-2020, ISO9513-2012, ISO6892-1-2009,
ISO898-1-2013,
ASTME8(E8M)-2013a, ASTMA370
Deformation Measurement Accuracy | Within ±0.5% of the indicated value (large or small deformation can
be selected according to customer requirements) |
| Test Bench Safety Device | Electronic limit protection |
| Test Bench Lifting Device | Fast/slow two speed automatic control, jogging possible |
| Bench Return Function | Manual or automatic two options, automatic or manual return to the
initial position of the test at the highest speed after the test |
| Overload Protection | 10% more than the maximum load, the machine automatically protects |
| Fixture Configuration | A set of tensile fixtures |
| Host Size | 1040×590×2000mm(L*W*H) |
| power System | Taiwan Delta AC servo motor + drive + high precision ball screw |
| power Supply | 220V, 50HZ, |
| Power | 0.75KW (according to different force value requirements, different
power motors are standard) |
| Host Weight | 500 KG(approximately) |

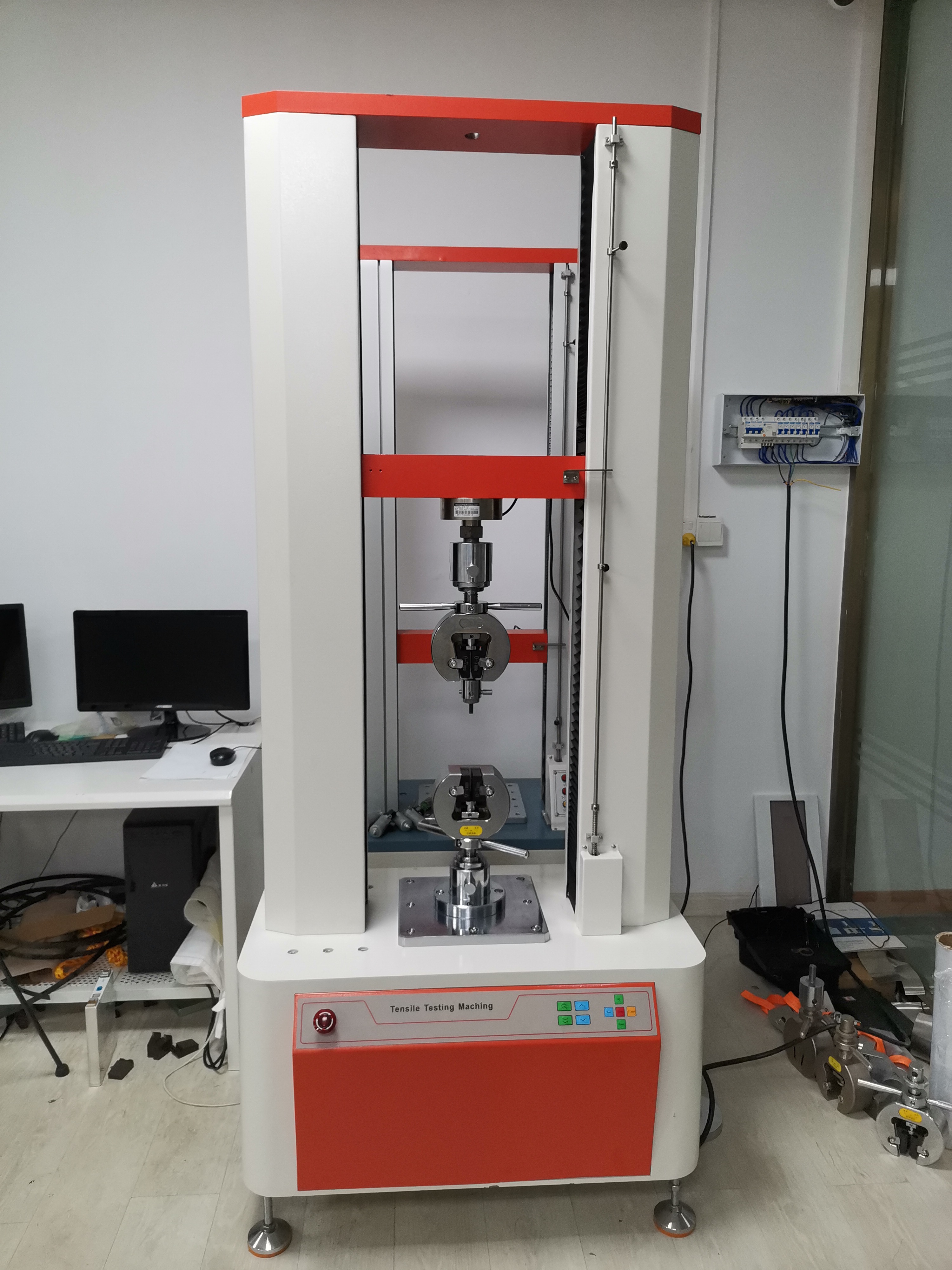

Machine Picture:
