1. Equipment summary:
Electric Tensile and elongation Test Equipment a simple type
machine, simple structure, convenient operation, It can be tested
on the operated table, Using the electronic control systems, load
sensor is rising and falling to test the tension or compression
through the motor rotation, transmission machinery and T-screws.
This machine is simple to operate, especially suitable for
controlling quality in production line, This series of machine is
mainly applied to test the non-metallic and metallic materials
which the load is less than 1KN.
2. Main functions:
This Electric Tensile and elongation Test Equipment can be test all
the material in tensile, compression, bending, shear, peel, tear,
two-point extended (need add extensometer) and others for control
products quality. Such as textile, rubber, plastics, synthetic
leather, tape, adhesive, plastic film, composite materials,
electronics, metals and other materials.
3. Main feature:
3.1 Excellent design: my company has focused on product appearance
over the years, company has developed many products that is similar
with the foreign products, the surface of product is made of
aluminum and process by electrostatic spray
3.2 digital force displayed by LCD , discernible tension or
pressure, LCD display clearly
3.3 Three kinds of units: N ,Kg ,Lb ,ton option or automatically
exchange;
3.4 LCD with backlight can be used in low-light environments
3.5 Single measurement, it can record the max force of tension and
compression in both directions, automatic or manual cleared to
zero.
3.6 The system would shut down if overload or over-trip

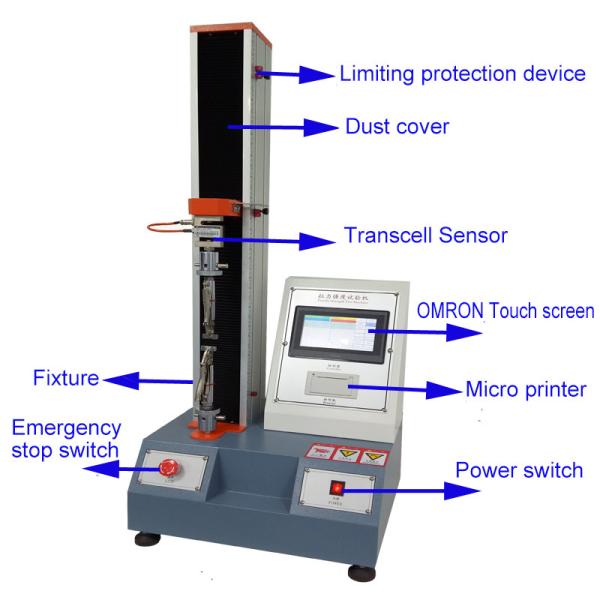

3.7 Structure of single-column is beautiful and sophisticated,
seating operation, relaxation and nature.
4. Corresponding standard: GB/T16491-1996 electronic universal testing machine
5. Applicable industry:
It is widely used in wire and cable, hardware, electronic and
electrical equipment, packaging, printing, medical equipment, auto
parts, textiles and leather, clothing, shoes, rubber and plastic
products, colleges and universities; research laboratories;
inspection arbitration, technical supervision departments and many
other industries, it is the basic equipment for quality management
and physical tested
6. Technical parameters:
| Model | ZL-8004A Electric Tensile and elongation Test Equipment |
| Maximum load | 1KN high-precision sensors from U.S.A. |
| Capacity choice | 200N, 500N, 1KN or less than can be self-selected |
| Unit | KG, N, LB, TON, can be exchanged. |
| Accuracy load of measurement | the load cell + ZL-2000 screen ± 0.5% (full range of 5% -100%) |
| Resolution | 1 / 50000 |
| Maximum test stoke(excluding fixtures) | About 500mm (excluding gripper, special testing space can be customized according to customer needs) |
| Test speed | 50-300mm / min with stepless speed and 5 fixed-speed (special testing speed can also be customized according to customer needs) |
| Data sampling frequency | 200times/sec |
| Machine with thermal printers can automatically output the testing
results. |
Can store 10 testing results and auto-calculate its average,
auto-grab maximum force and the force at break. |
| Display | YX-2000 dark blue LCD display, membrane touch keys, with the following functions. |
| Machine size | 45*58*135cm (length*width*height) |
| Weight | 75KG |
| Ratio of Breakpoint | from 0 ~ 99%, which the user can set according to different materials to stop the machine, realizing stop machine at any position. |
| Safety | The system would shut down if overload or over-trip. |
| Shape | column shell is made of aluminum material. |
| Power system | AC Motor |
| Power | 120W(depending on different demand of force using different motor) |
| Power supply | 1Φ, 220V, 15A |
