Equipment summary:

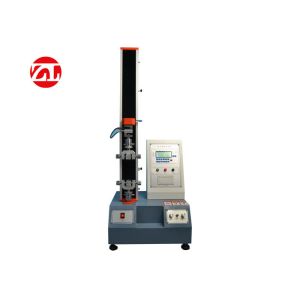

Fabric Tear Strength Testing Machine is a simple type machine,
simple structure, convenient
operation, It can be tested on the operated table, Using the
electronic control systems, load sensor is
rising and falling to test the tension or compression through the
motor rotation, transmission
machinery and T-screws. This machine is simple to operate,
especially suitable for controlling quality in
production line, This series of machine is mainly applied to test
the non-metallic and metallic materials
which the load is less than 1KN.
Corresponding standard:
GB/T16491-1996 electronic universal testing machine
ZL-8004B
Electric and computer desktop digital ten...
Applicable industry:
Desktop Adhesive Tape Tensile Testing Machine is widely used in
wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto
parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; research
laboratories; inspection arbitration, technical supervision departments and many other industries, it is
the basic equipment for quality management and physical tested.
Technical parameters
| Model | 1KN Fabric universal Tensile Strength Testing Machine |
| Maximum load | 1KN high-precision sensors from U.S.A. |
| Capacity choice | 200N,500N,1KN |
| Unit | KG,N,LB, TON |
| Measurement system | Load cell + HZ-2000 |
| Accuracy load of measurement | the load cell + HZ-2000 screen ± 0.5% (full range of 5% -100%) |
| Resolution | 1 / 50000 |
| Maximum test stoke(excluding fixtures) | About 500mm (excluding gripper, special testing space can be customized according to customer needs) |
| Test speed | 50-300mm / min with stepless speed and 5 fixed-speed (special
testing speed can also be customized according to customer needs) |
| Data sampling frequency | 200times/sec |
| Machine with thermal printers can automatically output the testing
results. |
| Can store 10 testing results and auto-calculate its average,
auto-grab maximum force and the force at break. |

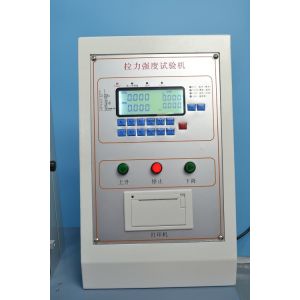

| Display | ZL-2000 dark blue LCD display, membrane touch keys, with the
following functions. |
| Machine size | 45x58x135cm (length*width*height) |
| Weight | 75KG |
| Ratio of Breakpoint | from 0 ~ 99%, which the user can set according to different
materials to stop the machine, realizing stop machine at any position. |
| Safety | The system would shut down if overload or over-trip. |
| Shape | column shell is made of aluminum material. |
| Power system | AC Motor |
| Power | 120W(depending on different demand of force using different motor) |
| Power supply | 1Φ, 220V, 15A |
The servo tension machine is mainly suitable for testing metal and
non-metal materials, such as rubber, plastic, wire and cable, fiber
optic cable, seat belts, safety belts, leather belt composite
materials, plastic profiles, waterproof coiled materials, steel
pipes, copper materials, profiles, Spring steel, bearing steel,
stainless steel (and other high-hardness steels), castings, steel
plates, steel strips, non-ferrous metal wires for stretching,
compression, bending, shearing, peeling, tearing, two-point
extension (extension is required) Count) and many other tests.
