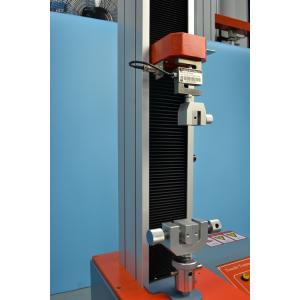

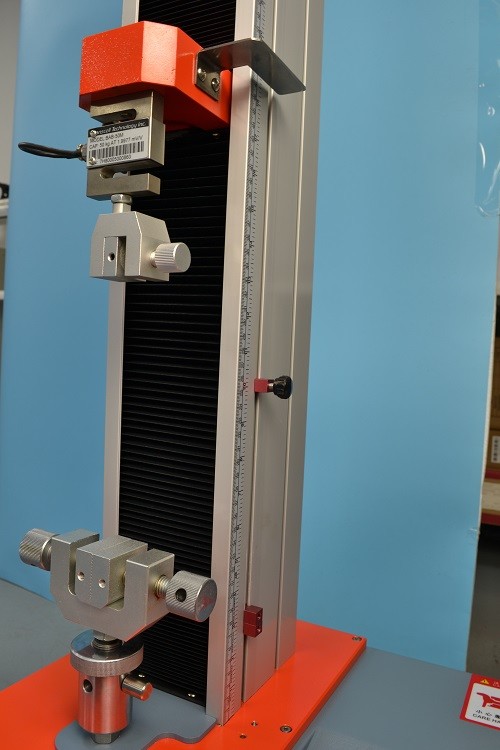

Single Pole Desktop Mini Computer Tensile Testing Machine
Equipment summary:
ZL-8004C desktop computer servo testing machine is a new material
testing machine that combined with the electronic technology and
mechanical transmission, it has accurate load speed, range of force
measurement, Has high accuracy and sensitivity for the load,
displacement measurement and control, This series of machine using
single-space structure, operational space at the bottom, it is
mainly applied to test non-metallic and metallic material which the
load is less than 1kN, it has the parameters, such as stress,
strain, control mode of displacement ,calculated max force, tensile
strength, bending strength, compressive strength, elastic modulus,
rate of elongation, yield strength and others.
Main function
This machine can be applied to test lots of materials in tension,
compression, tear, peel (can 90 degrees and 180 degrees) and other
mechanical test, such as rubber, tires, belt, shoes, plastic, film,
acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipe, composite
materials, waterproof materials, fibers, textiles, wire and cable,
paper, gold foil, ribbons, thread, spring, wood, medicine packaging
materials, tapes etc.
ZL-8004C Desktop computer servo testing machine(s...
Main features:
1. Adopt Panasonic servo motor, the beam moves up and down to test
the load through the transmission.
2. The whole control system is safe and high reliability
3. Microcomputer control the whole testing process, real-time
dynamic display the load values, displacement values, deformation,
testing speed and testing curves.
4. Microcomputer for data processing and analysis, testing results
can be saved automatically, testing curve can be transferred out
after the test, you can know the testing process through the
testing curve, or compare with others curves, or amplify the curve.
5. the testing software of the Window, with strong processed
capabilities of data and graphics, it can immediate print out a
complete testing report and testing curves.
6. Has limit protection, overload protection, emergency stop and
other safe protective functions.
Tensile testing machine is also known as universal material testing
machine. The universal testing machine is a mechanical afterburner
testing machine used for static load, tension, compression,
bending, shear, tearing, peeling and other mechanical properties of
instruments and equipment for various materials. It is suitable for
plastic sheets, pipes, Various physical and mechanical performance
tests of profiled materials, plastic film, rubber, wire and cable,
steel, glass fiber and other materials are developed for material
testing, teaching research, quality control and other indispensable
testing equipment. Tensile machine fixtures are used as
instruments. An important component, different materials require
different fixtures, which is also an important factor in whether
the test can be carried out smoothly and the accuracy of the test
results.
Technical parameters:
| Model | ZL-8004C |
| Maximum load | 200N,500N,1KN, option, |
| Accurate grade | 1grade/0.5 grade |
| Effective measuring range | 0.2％～100％/0.4％～100％ |
| Measuring accuracy | the value ±1％/ the value ±0.5％ |
| Tester resolution | Max load 1/200000,constant the resolution |
| Load sensor | Basic configuration:sensor(max load): one Extended configuration:can add more sensors |
| Effective tensile stroke | 500mm(can be increased the height according to customer’s
requirement) |
| Range of testing speed | 0.001～500mm/min |
| Accuracy of displacement measurement | Tolerance: ±0.5％/ tolerance: ±0.2％ |
| safety | Electronic-limit protection |
| Testing platform moving device | Fast /slow two speeds to control,can jog |
| Return back | Manual or automatic operation,After the test, the moving iron
return to initial position with the highest speed by manual or
automatic operation |
| Overload protection | Overload 10％,automatic protection |
| fixture | A set of tensile fixture |
| Machine size | 45x58x135cm (length*width*height) |
| Motor | Panasonic AC servo motor and drive |
| Power supply | 220V,50HZ |
| power | 0.4KW(depending on different demand of force, using different
motor) |
| weight | (about)75 KG |
| Unit | KG, N, LB, TON, can be exchanged. |
