| Brand Name : | ZL |
| Model Number : | ZL-3012A |
| Certification : | CE,ISO |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 60 sets / month |
| Delivery Time : | 4-8 work days |

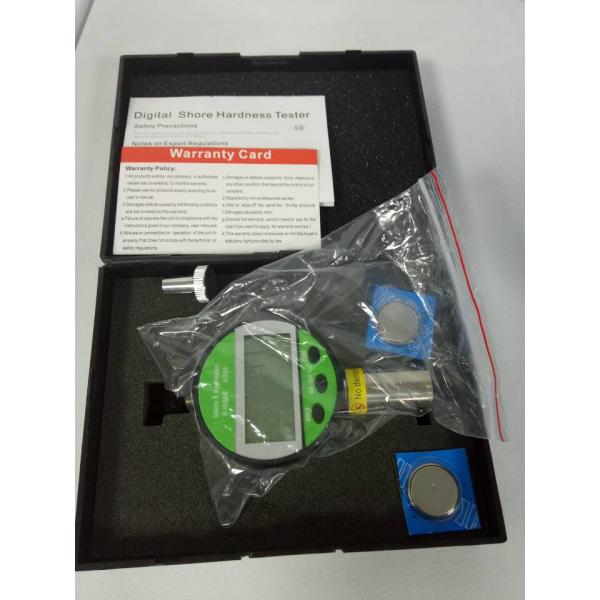

ISO 868 , SATRA TM 205 Vulcanized Rubber and Plastic Shore A Hardness Instrument
Product Overview:
Shore hardness is a measure of vulcanized rubber, rubber and plastic hardness instrument, which has A-type, D type, C type three kinds of patterns. A-type and D type were applied to the low hardness and high hardness in the hardness of rubber materials. C-applied compression rate of 50%, the stress 0.049Mpa above, the use of rubber and the use made of plastic foam in the shoe with micro hardness testing. The hardness Executive GB/T531, GB2411, HG/T2489JB6148 requirements.
Technical parameter:
| Dial Value | A type 0-100HA,D type 0-100HD,C type 0-100HW |
| Pressure needle stroke | 0-2.5mm |
| Pressure needle tip pressure | A type,C type Z0.55N-8.06N D type 0-44.5N |
| Accuracy | ±1HA |


|
