YG032E Pneumatic Controlled Automatic Hydraulic Diaphram Bursting
Tester
INTRODUCTION
Textile fabrics having no particular directions cannot be tested
its strength in tensile testers;a multidirectional force generated
by hydrostatic pressure is applied on fabric to check the strength
of that
fabric, this phenomenon is called bursting strength testing.YG032E Automatic Hydraulic Diaphram Bursting Tester is specially designed to perform the bursting strength testing of
kitted fabrics, with pneumatic control.It can also be used for
leather, paper & card Boards etc.
USAGE
To determine the bursting strength and distension at burst of woven
and knitted fabrics as well as technical textiles,non-wovens,bonded
fabrics,plastics,leather (artificial and natural) and cardboard.
TESTING STANDARDS
ASTM D 3786 Standard Test Method for Hydraulic Bursting Strength of
Textile Fabrics
Diaphragm Bursting Strength Tester Method
BS 4768 Determination of Bursting Strength and Bursting Distension
ISO 13938-1 Textiles - Bursting properties of fabrics, Hydraulic
method for determination of bursting strength and bursting
distension
ISO 2758 Paper - Determination of bursting strength
ISO 2759 Board - Determination of bursting strength
ISO 3303 Rubber - or plastics-coated fabrics - Determination of
bursting strength - Hydraulic method
WSP 030.1.R3(12),BS 3424(PT6),ERT 80-4-20,EN 12332-2,IWS TM 29,ASTM
D751,JIS L-1018
TEST PROCEDURE
The Burst Tester is designed for measuring the bursting strength of
fabric materials subjected to an increasing hydrostatic pressure.
This pressure is applied to a circular region of the specimen via
an elastic diaphragm. The specimen is firmly held round the edge of
this circular region by a pneumatic clamping device. When the
pressure is applied, the specimen deforms together with the
diaphragm. The bursting strength corresponds to the maximum
pressure supported by the specimen before failure. Identical, in
the principle to the multi-directional tensile test, Ball Burst
Method for Fabrics, this measurement is independent from the
cutting direction of the sample (machine or cross) since the
failure naturally occurs in the least resistance direction.
Procedure:
- The fabric sample is clamped over the rubber diaphragm.
- The pressure in the fluid increases at such a rate that the
specimen bursts within 20 ± 3 sec. (P1).
- The height (extension) of the diaphragm is noted.
- Another test is carried out without a specimen.
- The pressure to do this is noted and then deducted from the earlier
reading.
- (P1 - P2) is the actual bursting strength of the specimen
SALIENT FEATURES
1.Touch screen panel for a simple and intuitive use of the
instrument.
2.Pneumatic operated clamping ensures repeatable test result.
3.Automatic test cycle with breaking detection and auto-return to
initial test position.
4.Smooth precision engineered components for excellent performance.
5.Safety protection around the measuring area and illuminated
viewing area can easily view tests in progress.
6.Test methods:Constant Rate - Constant Pressure - Constant
Distension –Timing
7.Maximum distension height 75mm.
8.Equipped with cross mode to indicate strength of rubber diaphragm
at the time of determining true value of bursting strength of
sample.
9.Glycerol deposit store of 200 cc capacity, facilitating a easy
drain of the air out of the system.
10.PC & PRINTER connection.
11.Supplied with calibration & inspection certificates.
TECHNICAL DETAILS
1.Areas of Application: Textiles:Knitted and woven apparel, Technical textiles
Nonwovens:Wet wipes, surgical gowns/masks
Plastics:Food packaging, bin liners, sacks and various plastic products
Medical:Organ patches, hernia patches, wound dressings, animal skin
Paper:Kitchen paper, Toilet tissue, Other paper products
2.Pressure measurement range:YG032E-2, 2000kPa, L/C : 1kPa
YG032E-10, 10000kPa, L/C : 3kPa
3.Distension measurement range:Up to 75 ± 0.02 mm

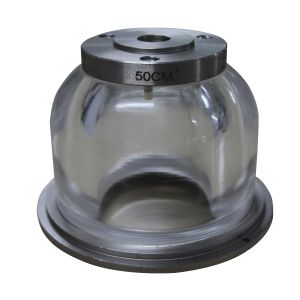

4.Measuring areas:7.3cm² (Ø 30.5mm),50cm² (Ø 79.8mm)
Optional:7.1cm²(Ø30.1mm),7.55cm²(Ø31mm),7.8cm²(Ø31.5mm),10cm²(Ø35.7mm),100cm²(Ø113mm)
5.Unit of measurement:kPa - kgf/cm² - mmHg - lb/in² - atm
6.Test methods:Constant Rate - Constant Pressure - Constant
Distension –Timing
7.Hydraulic system rate of flow (adjustable):20-600mL/min
8.Hydraulic oil : Glycerine 85%, distilled water 15%
9.Safety sensor:Over scale auto-stop
10.Diaphragm rubber thick: ≤ 2 mm
11.Data port:RS232 port for printer connection and 3 pin Mini-DIN
connector for PC.
12.Dimensions:550 x 450 x 700 mm
13.Power supply:220V,50Hz or 110V,60Hz
14.Air requirements:600-800kPa
15.Weight:125 Kg
ACCESSORIES SUPPLIED WITH THE INSTRUMENT
| Main Unit | 1 |
| Test Kit | 7.3cm² (Ø 30.5mm) and 50cm² (Ø 79.8mm):01 No.(each) |
| Synthetic Rubber Diaphragms(Maufacturer:James Heal) | 5 |
| Diaphragm Unit Tightening wrench | 1 |
| Air Pipe (To connect with compressor) | 1 |
| Glycerol (500mL) | 1 |
| USB software | 1 |
| Power Cord | 1 |
| This User’s Manual | 1 |
| Inspection & Conformance Certificate | 1 |
