    150° Pendulum Elevation Digital Charpy IZOD Impact Tester with 3.8 m/s Impact Velocity

    Ask Lasest Price
    Brand Name : ZL
    Model Number : ZL-3016D
    Certification : ISO
    Price : Negotiable
    Supply Ability : 100 set per month
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    150° Pendulum Elevation Digital Charpy IZOD Impact Tester with 3.8 m/s Impact Velocity

    150° Pendulum Elevation Charpy IZOD Impact Rubber Plastic Testing Machine
    Product Overview

    The 150° Pendulum Elevation Charpy IZOD Impact Testing Machine is a precision instrument designed for evaluating the impact toughness of various materials including plastics, rubber, and other non-metallic substances.

    Machine Performance Features
    • Izod clamp jaws wedge from mouth design for optimal clamping
    • Free and fast clamping mechanism
    • Latest development featuring advanced engineering
    Application Scope

    Digital type Charpy Impact Tester suitable for plastic pipes, plates, profiles, engineering plastics, fiberglass, ceramics, cast stone, insulation materials and other non-metallic materials requiring impact toughness evaluation.

    Compliance Standards

    ISO 180, GB/T 1843, GB/T 2611, JB/T 8761

    Technical Specifications
    ParameterSpecification
    Charpy Energy1, 2.75, 5.5 J | 11, 22 J
    Impact Velocity3.5 m/s
    Pendulum Elevation150°
    Center-to-Center Distance335 mm
    Pendulum TorquePL1=0.53590 Nm, PL2.75=1.47372 Nm, PL5.5=2.94744 Nm | PL11=5.8949 Nm, PL22=11.7898 Nm
    Impact Blade RadiusR=22±0.2 mm
    Sample Size Types80×10×4 mm, 63.5×12.7×3.2 mm, 63.5×12.7×6.4 mm, 63.5×12.7×12.7 mm

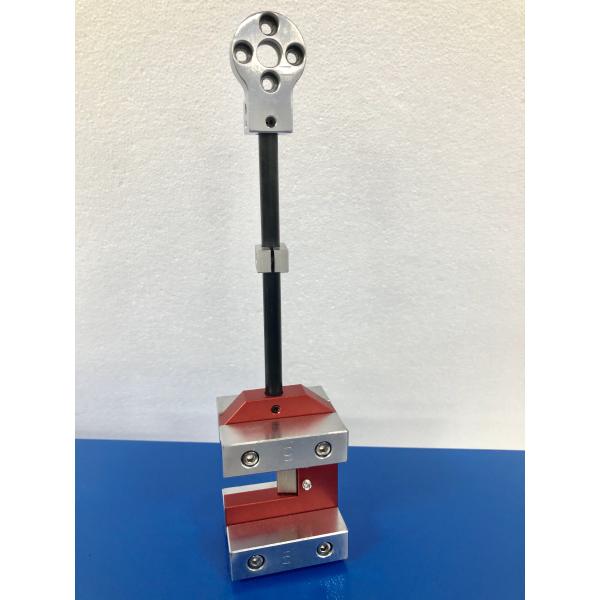

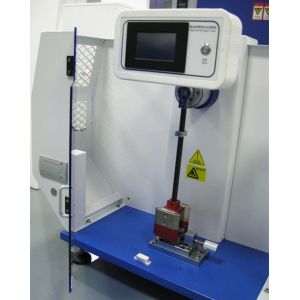

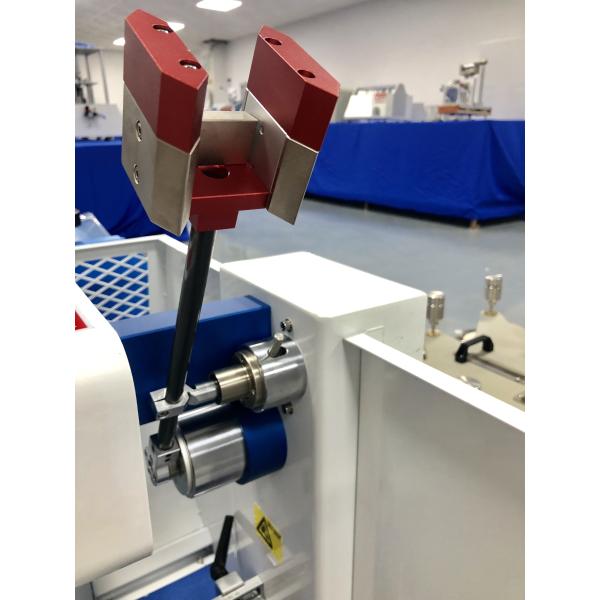

    Product Images
