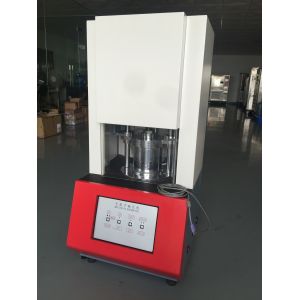

Automatic PC System Mooney Viscometer Rubber Torque Equipment Price
Download Brief:
ZL-3001
No Rotor Rheometer.pdf
Software Introduction
A.Testing standardization:GB/T16584, ISO6502:1991 and ASTMD5289-95.
B.Specimen information:set the material no,like “RBS6".User can set
the title freely.
C.High quality function:You can modify the testing time when in
operation.For example:When you set 20min to finish
vulcanization,when in testing to 11min,you find the rubber material
can finish vulcanization in 9min,and no need to test longer.You can
modify the test time in software to 9min,the test will stop in
9min,and will draw integrity vulcanization curve and caculate the
test data.If you test 18min,19min will finish,but it doesn't finish
vulcanization,need to continue testing,or the testing data will be
wrong.At this time,you can set the test time longer,modify 25min or
more,Until the vulcanization finishing.It can time and rubber
material.
D.Graph curve scale automatic optimization(Auto Scale),after
testing,software can according to test data size to adjust Y
scale,according to 0—5 Mv 0—10Mv 0-20Mv,making testing curve more
beautiful,for different material,you can also compare the data in
software.
Applicable industry:
Widely used in rubber products industries.
Technical parameters:
| Model | ZL-3001 No Rotor rheometer |
| Meet standard | GB/T16584, ISO6502:1991 and ASTMD5289-95 |
| Temperature tester | Room temperature to 200°C |
| Heating speed | room temperature—200℃,about 10 min |
| Temperature accuracy | ≤ ±0.1°C |
| Temperature resolution | 0.1°C |
| Torque range | 0-5N.M,0-10N.M,0-20N.M (option) |
| Torque resolution: | 0.001NM |
| Motor rotating speed | 100 times / min |
| Rotor type | Rotor less |
| Die body pendulum | 1.7Hz±0.1Hz(100r/min) |
| Rotor pendulum angle | ±0.5°, ±1°, ±3° |
| Testing time setting | 3min--120min,choose freely |
| Air compression | 0.5Mpa--0.65MPa |
| Ambient temperature | 0-35°C |
| Test result | Printing:date,time,temperature,vulcanization curve,temperature
curve,ML,MH,ts1,ts2,t10,t50,Vc1,Vc2. |
| Consumption power | 800 w |
| Dimension | 640mm×580mm×1300mm |
| Power | Single phase, 220V±10%, 50Hz |
| Display | Windows 7 + software |
| Weight | 260kg |
We are Zhongli Instrument Technology Co., Ltd, an instrument
Expert, Headquartered in Dongguan, Guangdong, China.since 2007,
specialized in manufacturing Lab testing equipments.
Throughout its more than 14 years of history, Our products have
sold well in the Europe, America and Southeast Asia market and
total more than 95 countries these years,especially favored by
European and American countries.
Our equipments cover a wide range of industries, such as rubber and
plastics industry, food industry, packaging industry, electronics
industry, etc.and are suitable for all scientific research units,
quality inspection institutions and academic fields.
In addition to standard machines, our R&D team can customize it
for you. Just tell us your needs and we will make you satisfied.
