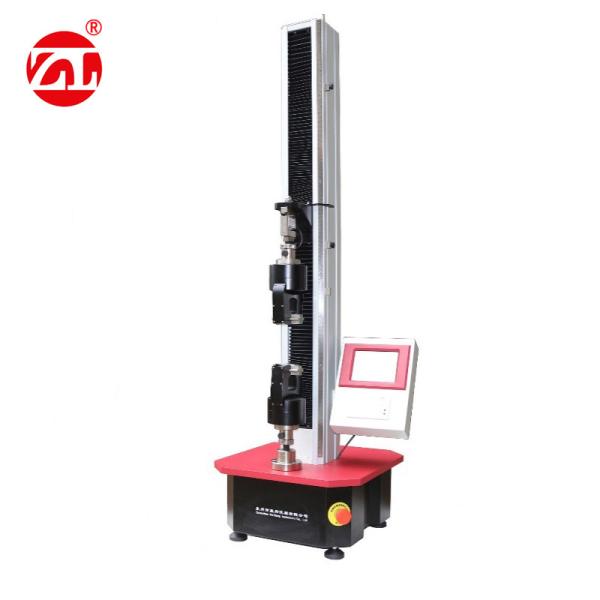

Instrument features:

1, the instrument column aluminum profiles, high temperature curing spray surface, scratch-resistant and not easy to fade.

2, AC servo drive imports, ball screw, can do a wide range of speed settings, suitable for testing a variety of mechanical properties of materials.

3, the instrument configuration imported load high-precision sensors, high-speed 24 bits A / D, the effective acquisition frequency of 1000Hz.

4, multi-function pneumatic fixture, simply replace the clip can be completed in different tests, replacement convenient and quick, tensile and bursting measured

Try not to change the sensor.

5, The instrument adopts an open structure, the user can edit the required test procedures, data analysis formulas, test reports based on the type and characteristics of the measured material, and the test method requirements. Instrument hardware and software are used piece structure, free to match the components to complete different testing needs. Man-machine dialogue interface operation, guide the pilot to complete the test, and through online support, easy upgrade and maintenance of the instrument.

6, the instrument holding distance from the digital setting, and automatic positioning.

7, the instrument uses a variety of protective measures: the beam on the lower limit protection device; fixture anti-collision protection device; set displacement and load limit software protection; sensor overload protection; sample load software protection; over-current, over-voltage protection . And the main components for real-time monitoring. Therefore, the use of more safe and reliable equipment

8, the instrument host using touch screen control, intuitive operation simple, and built-in printer, easy to use.

9, the instrument optional tablet PC, wireless wifi control operation or through the android system phone control.

Technical Parameters:
