Brand Name : | Zhongli |
Model Number : | ZL-5016 |
Certification : | ISO,CE |
Price : | Negotiable |
Payment Terms : | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability : | 100 sets per month |
Delivery Time : | 5 days after the order confirmed |

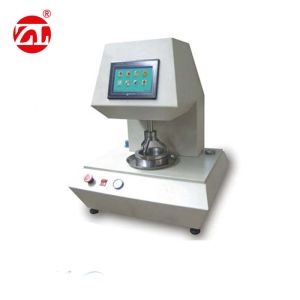

Digital Fabric Water Permeability Hydraulic Pressure Testing Machine
1.Applicable Range:
Fabric Water Permeability Hydraulic Pressure Head Tester used for testing the water permeability of compact fabrics, including canvas, coated fabrics, cover cloth, rainproof clothing fabrics and geotextile materials, ect.
2.Testing mode:
1 Turbocharged;
2 Constant pressure time;
3 Constant pressure regularly;
4 Flexing resistance relaxation method;
5 Leakage water method
4.Technical Specifications:
Model | Testing range | Water tank lifting speed | Area of specimen gripholder |
-5 | 500pa-50kpa | 1kpa-20kpa | 100cm2 |
-20 | 500pa-200kpa | 1kpa-30kpa | |
-50 | 5kpa-500kpa | 1kpa-100kpa | 8cm2 |
-100 | custom-made |
5.Instrument characteristics:
5.1 Computer program-controlled, LCD Chinese menu, built-in five
sets of measurement mode
5.2 Built-in water tank design, original water rate balance system,
with stable and accurate lifting speed
5.3 Pneumatic clamp
6.Technical parameters:
Power source | Ac 220V±10% 50HZ 200W |
External dimension | 560*400*600mm |
Weight | 60kg |
![]() |
