Good Repeatability / Versatile Instrument Digital Fabric Tearing
Tester
Application :

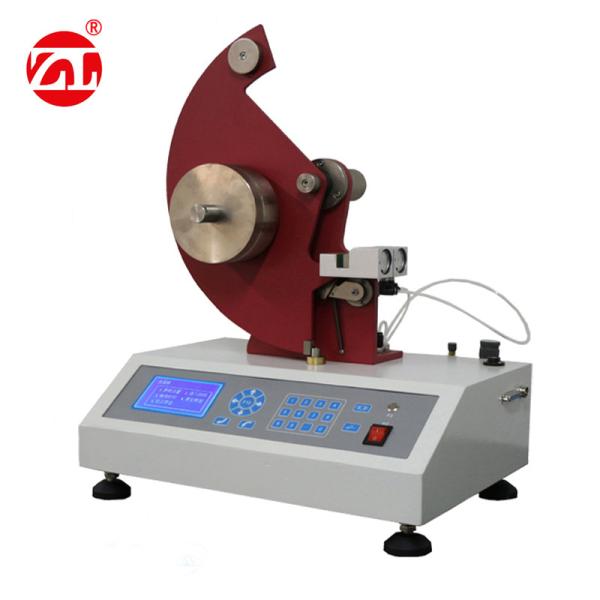

The YG033B is a powerful, versatile instrument that has been
extensively redesigned with a modern look and a host of new
features to excel in value, accuracy, safety and flexibility. The
product is used for the determination of tearing strength of all
kinds of woven fabrics. It can also be used to measure the tearing
strength of paper, plastic cloth, film, electrical tape, foil and
other materials.
【Standards 】:
Textiles: GB / T 3917.1 Textiles - Tear properties of textiles Part
1 Determination of the impact of pendulum hammer test method
ASTM D1424, DIN 53862, EN ISO 13937-1, ISO 4674-2, ISO 9290, M & S
P29, NEXT 17, NF G07-149
Paper: GB / T 455, APPITA P 400, ASTM D 689, BS 4468, CSA D9, DIN
53128, EN 21974,
ISO 1974, JIS P 8116, PAPTAC D9, SCAN P11, TAPPI T414, UNI 6444
Plastics: GB / T 11999, ASTM D1922, ISO 6383-2, JIS K 7128-2, NF
T54 141
Nonwovens: ASTM D5734, WSP 100.1
Instrument features:
1, Advanced calculation method (potential law calculation), to
ensure accurate testing and good repeatability.
2, Micro-control system, automatic testing, calculation, analysis
of results, print test reports, upload test data.
3, User-friendly control system, Chinese and English user
interface, easy to operate, all buttons for the function of soft
keys, simple and clear control panel.
4, Free access to all the data within the host and statistical
results.
5, The test unit can choose between N, cN, gf and lbf and
automatically convert to adapt to different standards.
6, Pneumatic sample holder and pendulum release, to ensure that the
clamping force is consistent, and can reduce the operating
strength.
7, Automatically cut the specimen to ensure that the shape of the
incision, and can reduce the operating strength.
【Technical Parameters】:
| Measuring range | 0 ~ 16N, 32N, 64N |
| Measurement accuracy | ≤ ± 0.2% F · S |
| The measurement units | N, cN, gf, lbf |
| The sample holder | Pneumatic clamping (gas pressure: 0.6 ~ 0.8MPa) |
| Incision length | 20mm ± 0.1mm |
| Clamp mouth distance | 2.8mm ± 0.3mm |
| Dimensions | 480 × 330 × 630mm |
| Weight | 55kg |
| Power supply | AC220V 50Hz 100W |
