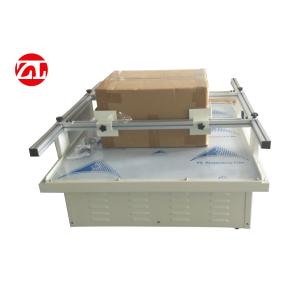

Digital Carton Simulation Transportation Vibration Test Machine
Equipment Overview:
Simulated shipping vibration test equipment conforms to US and
European shipping standards and is manufactured with reference to
similar US equipment. The path created by the eccentric bearings in
a rotating elliptical path is used to simulate the vibration of a
vehicle or ship collision while driving. Attach the test stand to
the eccentric bearing. As the eccentric bearing rotates, the entire
surface of the test stand moves up and down in an oval shape. The
adaptation of the change in the eccentric axis to the speed
corresponds to the adaptation of the speed of a car or ship.
ZL-9005A
Vibration Test Machine.pdf
Applications Industry:
Simulation Transport Vibration Test Equipment is applied to
packaged toys, electronics, furniture, gifts, ceramics, packaging,
and other products to simulate transport tests according to
American and European transport standards.
To meet the criteria:
Simulation transportation vibration test equipment meets the following standards: GB / T 4857.7-92 "Transport package
fixed-frequency sinusoidal vibration test method"
Technical parameter:
| Model | Simulation transportation vibration test equipment |
| Rated load | 150 kg |
| Testing dimension | 130*120 cm |
| Maximum Acceleration | 1.25g |
| Frequency | Frequency of 2-5 Hz continuously adjustable |
| Amplitude | 25.4MM(1 Inch) |
| Power | 220 V60Hz |
| Motor | Rotary DC motor |
| Fence Height | 33 cm,38 cm,42 cm |
| Dimension | 140×130 cm |
| Gross | 288 kg |
Main Features:
Digital instrument display vibration frequency; synchronous belt
transmission mute, very low noise; test items using clamping rail
type, easy to operate, safe; machine using heavy-duty channel steel
base with anti-vibration pad, easy installation, smooth operation,
without Install ground pin screw; DC motor speed control, running
smoothly, load capability; rotary vibration (commonly known as
Valley-type).
