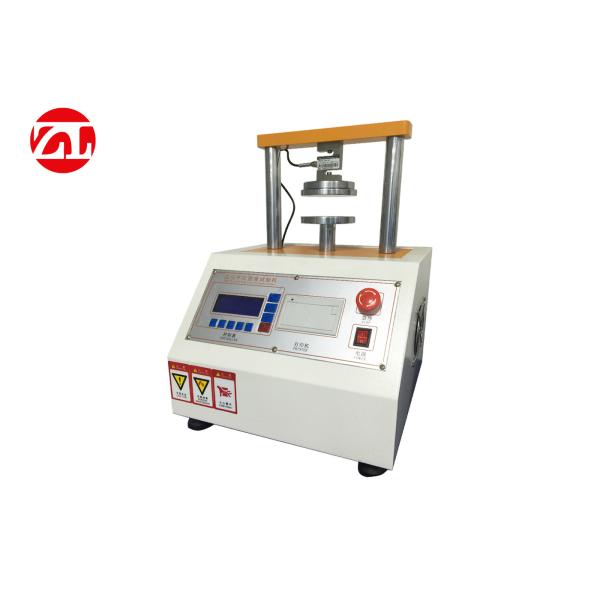

ASTM D3786 Digital Ring Crush Strength Testing Machine
Corresponding standard :
IS02759,GB/T1539,QB/T1057,ASTMD3786,GB/T6564,GB/T465
Description:
The machine used to test the compression resistance degree of
corrugated paper and kraft paper in upright direction at certain
condition. This machine can also do flat crush strength test,
compression resistance test,Sticky degrees test as well as other
compression tests.This machine also equipped with advanced high
precision load device and load displayer, thus the test load value
can display and read directly.
ZL-9003B
Digital type ring crush strength testing ...
The usage:
Crushing Strength Testing Instrument is applied to test
anti-rupture strength for raw paper, corrugated cardboard, leather,
cloth and synthetic leather. Record the value of
force,automatically keep the maximum value of fracture strength,
decomposition degrees has improved 100 times than the needle
display type. This equipment is important to control the quality
product.
Applicable industry:
It applied to test the anti-breaking strength of boxes for
packaging, which of electronics, electrical appliances, wires,
hardware, bicycles, handbags, food, footwear, clothing,
furniture.etc.
Accessories:
Side pressure strength test= Ring Crush Tester+ Parallel cutting knife + Side pressure
counselling piece
Ring crush strength test= Ring Crush Tester+ Ring crush sampler +Ring crush fixture
Bonding strength test = Ring Crush Tester + Hood strength stripping frame;
Flat crush strength test = Ring Crush Tester+ Flat crush sampler;
Specifications:
| Capacity (Optional) | 10, 20, 50, 100, 200 kg |
| Resolution | 1/250,000 |
| Precision | < 0.25% |
| Display Mode | LED |
| Platen | 100×100 mm or depending on the diameter of the flat crush sample |
| Compressed Space | 500mm |
| Pplaten Parallelism | ± 0.05 mm |
| Ring Crush Sample | 152×12.7 mm |
| Edge Crush Sample | 25×100 mm |
| Test Speed | 12.7 mm/min |
| Dimension (L×W×H) | 790×510×1060 mm |
| Weight | Approx. 51 kg |
| Power | 1ø, AC220V, 1.5A |
| Standard | TAPPI-T472; T808, T810, T811, T818;
JIS-P8126;
GBT2679.6, GBT2679.8, GBT2679.17 |
