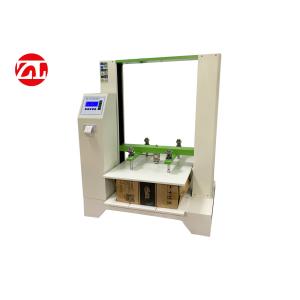

ISO 12048 IBC Carton Box Compression Packing Testing Equipment
The Application:
Concrete Compressive Strength Tester Price used for measuring the
pressure strength of cartons, containers, etc. for inspecting the
pressure-resistance and strike-endurance of packing materials
during transportation or carry. It's equipped with 4 precise Load
Cells for detection. The testing results are displayed by computer.
ZL-9001A
Computer type carton compression testing ...
Specifications
| Concrete Compressive Strength Tester Price |
| Model | ZL-9001A |
| Capacity (optional) | 1000KG,1000KG,1200KG |
| Unit (switchable) | Kg, Lb, N |
| Load Resolution | 1/250,000 |
| Load Accuracy | ≤0.5% |
| Stroke (exclude the grips) | 400 mm |
| Test Space (L×W×H) | 1300×1500×1200mm |
| Speed of Compression | 10 ± 3 mm/min |
| Operation Mode | PC |
| Report Items | Serial number, Peak value, Average value, Designated holding pressure value; all memorable |
| Structure | Panasonic servo Motor (Japan) ; Imported ball screw rod |
| Dimension (L×W×H) | 2000×1500×2030mm |
| Weight | Approx. 1340kg |
| Power | 1ø, 220v/ 50Hz |
| Safety Devices | Overload protection, overvoltage protection & limited position protection device |
| Standard | TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642 |
The Features:
Concrete Compressive Strength Tester Price
1. Adopting windows platform, and all the parameter settings can be
processed in the dialog box, and it operates easily;
2. Using a single-screen operation; do not need to switch the
screen;
3. With three languages in Simplified Chinese, Traditional Chinese
and English, the software interface can be switched easily;
4. The pattern of Test reports can be self-designated; test data
can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to
make a number of curve data comparison;
6. With a variety of measurement units, Measure In Imperial &
Metric are switchable;
7. With self-return & auto-correction function;
8. With automatic magnification function, in order to achieve the
most appropriate size of the graphics;
9. With the user-defined Test methods; with experimental data
analysis function;
10. It can do test of compression, bending, pressure holding &
fatigue.
11. With high precision and accuracy and reasonable price, it can
test the crush instantaneously and stop automatically.
