Simulated Transport Vibration Testing Machine

Ask Lasest Price
Brand Name :	ZL
Model Number :	ZL-9005
Certification :	ISO
Price :	Negotiable
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	100 set per month
Delivery Time :	5-7 days

Add to Cart

Product Details
Company Profile

Simulated Transport Vibration Testing Machine

Equipment Overview:

Carton Transportation Vibration Test Machine is based on the United States and European transport

standards, and with reference to the United States of similar equipment to improve manufacturing. The use of eccentric bearings in rotating elliptical trajectories generated to simulate a car or ship the goods during transport the vibration of the collision. Test platform will be fixed on the eccentric bearing, when the eccentric bearing rotation, the test platform for the entire plane would produce an oval-shaped upper and lower front and rear movement, adjust the eccentric shaft with the rotation speed is equivalent to adjust the speed of motor vehicles or vessels.

Main Features:

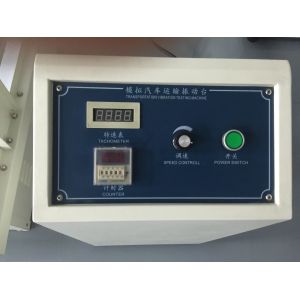

Digital instrument display vibration frequency; synchronous belt transmission mute, very low noise; test items using clamping rail type, easy to operate, safe; machine using heavy-duty channel steel base with anti-vibration pad, easy installation, smooth operation, without Install ground pin screw; DC motor speed control, running smoothly, load capability; rotary vibration (commonly known as Valley-type).

To meet the criteria:

Carton Transportation Vibration Test Machine meets the following standards: GB / T 4857.7-92

"transport package fixed-frequency sinusoidal vibration test method"

Applications Industry:

Carton Transportation Vibration Test Machine applies to toys, electronics, furniture, gifts, ceramics,

packaging and other products packaged to simulate the transport tests, in line with the United States and

European transport standards.

Technical parameter:

Model	ZL-9005A
Rated load	230 kg
Testing dimension	180*150cm
Maximum Acceleration	1.25g
Frequency	Frequency of 2-5 Hz continuously adjustable
Amplitude	25.4MM(1 Inch)
Power	220 V60Hz
Motor	Rotary DC motor
Fence Height	33 cm,38 cm,42 cm
Dimension	190×160 cm
Gross	396 kg
