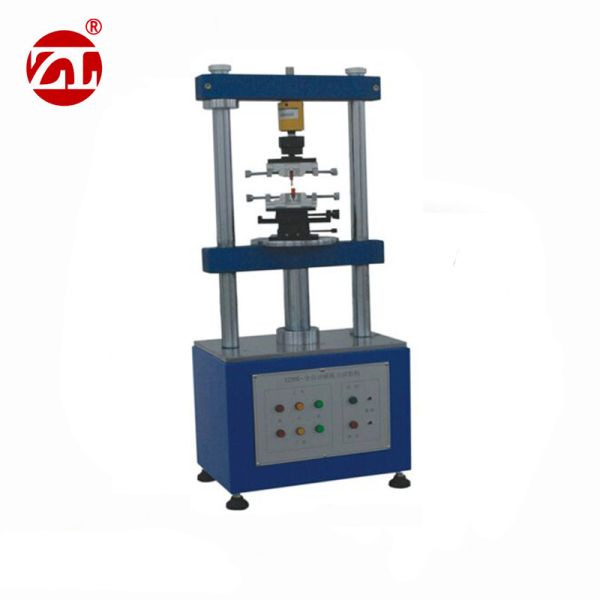

Push Pull Force Mobile Phone Test Equipment
Application:
Connector Push Pull Strength Test Equipment used in various kinds of connectors for plug in and plug out force
test, equip with automatic device for adjustment centre site and
special grips so that it can get the
precision insert force; Adopt Chinese Windows version software
frames setting which is easy for operation and can storage for test
data's (test condition, insert stroke curve graph, lifetime curve,
inspection report etc. ) Match with motional impedance test system,
can do insertion test as well as motional impedance test and
drawing together. (Load-stroke-impedance curve).Connector Push Pull Strength Test Equipment adopt high precision loading parts with servo motor for
measurement and drive, can get precision insertion force result. Connector Push Pull Strength Test Equipment is a kind of necessary machine for all kinds of connectors and
electrical products manufactures for research and development
together with
quality control application.
Test items
Test hole plug connector.
Test row of the connector plug
Life test plug connector.
Single-pin connector and plastic Retention Test
Connector test
Impedance measurements can be performed simultaneously (optional)
Various compression, tensile breaking strength test
Specifications:
| Product Name | Connector Push Pull Strength Test Equipment |
| Load capacity | 2kg, 5kg, 20kg, 50kg |
| Unit switch over | gf,kgf,lbf,N |
| Resolution | 0.001kg |
| Load precision | ±0.2% |
| Maximum travel | 150mm |
| Test speed | 0~200mm/min(0~600mm/min) |
| Speed precision | 0.5% |
| X,Y axis movement range | 0~75mm |
| Displacement resolution | 0.01mm |
| Dynamical System | Panasonic servo motor |
| Size | 360*260*940mm |
| Weight | 70kg |
| Power | 220V,50HZ / Customized |
Additional features (optional):
1. Dynamic impedance Test System MODEL, 101R
The system for testing insertion force tension or pressure may also
test the value of contact resistance, and
the dynamic resistance curve, drawing on the (load -stroke curves)
High-speed test function 100 / sec, can obtain more accurate values
of the impedance changes
Mobile phones and PDA can be used in testing the Battery Connector.
Pressure and stroke and the impedance curve.
Can be set to take power or travel itinerary to take impedance
values multi-function.
Stroke can be set to take the maximum impedance region (multi-point
function).
Do a single test and life test.
Can be drawn, the load - stroke - Impedance life curve
