    Dynamic Waterproof Leather Testing Machine

    Ask Lasest Price
    Brand Name : ZL
    Model Number : ZL-7050
    Certification : ISO
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100 set per month
    Delivery Time : 7-10 days
    • Product Details
    • Company Profile

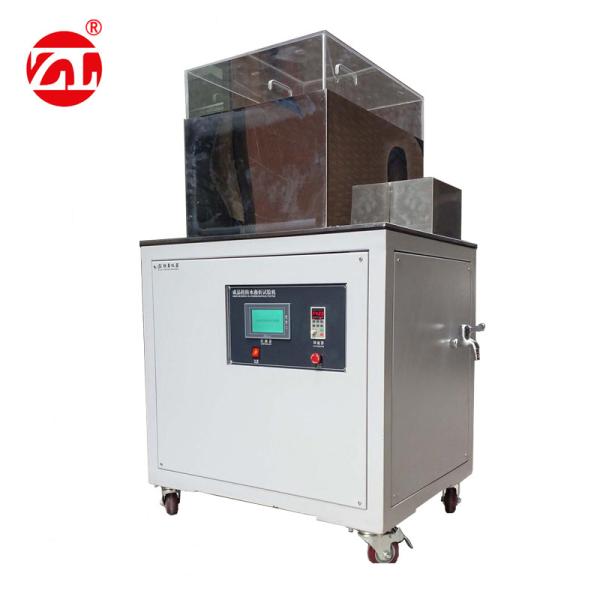

    Dynamic Waterproof Leather Testing Machine

    Dynamic Waterproof Leather Testing Machine

    Tester Introduction:


    1. This machine is used to test the dynamic waterproof performance of various finished shoes.

    2. Will become a shoe installed in the testing machine, put a certain amount of water in the tank and the shoe contact, test machine to a certain angle and frequency to promote the rear of the shoe bending to simulate the state of walking in the water.

    3. The test arrived at the set time or frequency, automatic alarm and shutdown.

    4. The use of advanced detection methods, as long as there is a slight water leakage in the shoe that is automatically sensed.


    Technical Parameters:


    Test rangeinto shoes 1 ~ 12 yards (UK), foot length 218 ~ 314 mm
    The number of tests2 (respectively, sensing, water automatically shut down)
    Bending speed60 ~ 140 cpm can be set, 60 ± 6 cpm (EN ISO 20344 requirements)
    Bending angle22 ° ± 5 °
    Bending directiontoe bending up and down
    TimerLCD, 0 ~ 99,999
    Permeability signal sensing methodautomatic sensing
    Drainage waterproofmanual drainage
    Tongming Dimensions650 × 830 × 1290 mm (L × W × H)
    Weight205 kg
    PowerAC 220V, 50 Hz

    Meeting standard: EN ISO 20344
