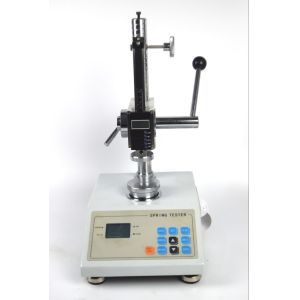

    Liquid Crystal Display Manually Spring Tensile Compression Tester

    Ask Lasest Price
    Brand Name : ZL
    Model Number : ZL-2105
    Certification : ISO
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 200 set per mongth
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    Liquid Crystal Display Manually Spring Tensile Compression Tester

    Liquid Crystal Display Manually Spring Tensile Compression Tester
    Product Overview

    TLS-S-I high precision liquid crystal display spring tension and compression testing machine is manufactured according to the JB/T 7796-1995 spring tension and compression testing machine standard. This equipment is primarily designed for tensile and compression testing of various spiral springs, as well as piston ring tension elastic testing.

    The machine can determine the test force of springs under specific displacement conditions, or measure spring deformation under specific test forces. It can also be used for testing other elastic elements and small mechanical properties. Primarily used by spring manufacturers, low voltage electrical appliance factories, power machinery factories, universities, and research institutions.

    Product Categories
    • Spring testing machines are categorized into manual and electric types (including automatic spring testers and microcomputer-controlled spring testing machines) based on spring sizes and pressure requirements
    • Further classified into liquid crystal digital display type and computer control type spring testing machines based on different detection requirements
    • Custom spring detection equipment available for specialized customer requirements
    Technical Specifications
    ParameterSpecification
    Maximum testing load500N
    Minimum resolution0.01N
    Diameter of the platen48mm
    Maximum free length of measurable spring150mm
    Length of travel of the displacement scale90mm
    Division value of the displacement scale0.01mm
    Indication error±1%
    Power SupplyAC 110-220V, 50HZ-60HZ
    Power capability (without printer)13W
    Power capability (with printer)20W
    Working temperature20±10℃
    Temperature of storage and transportation-27℃~+70℃
    Relative humidity15%~80%RH
    Liquid Crystal Display Manually Spring Tensile Compression Tester - Professional testing equipment for spring tension and compression analysis
