GB / T16491 Simple Type Desktop Digital Tensile Testing Machine
20KN
Machine introduction:
ZL-8002C Desktop digital tensile testing machine is simple type
tensile testing machine,simple structure, easy to operate,can be
placed on the worktable to testing. Using the electronic control
system, governor control speed regulating motor rotation, and then
slow down by variable speed mechanical construction to drive T type
lead screw Load sensor up and down, to complete specimen tensile or
compression test. Force out put by sensor, feedback to display,
test speed real-time display.
Especially suitable as production line control product quality
testing instruments. This testing machine mainly suitable for test
load is less than 2000KG non-metal and metal materials testing.
Main function:
ZL-8002C
Desktop digital tensile testing machine 5...

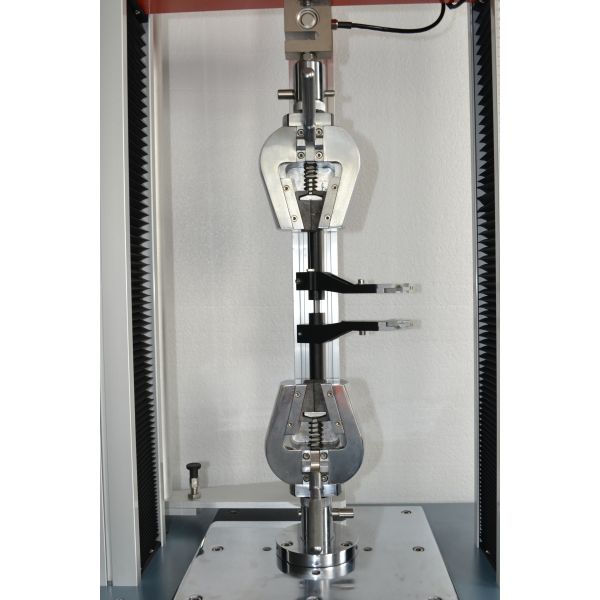

This machine is applied to test all material in tension,
compression, bending, shear, peel (90 degrees and 180 degrees),
tear or two extended (need to add extensometer) and others, the
material such as textile, rubber, plastics, synthetic leather,
tape, adhesive, plastic film, composite materials, electronics,
metals and other materials, it can judge the product quality from
the test.
Main features:
1. The appearance of good design. For many years, our company have
been very much pay attention to the appearance of the
products,developed many products can be comparable to those of
foreign models,surface is aluminum and electrostatic spray figure.
2. Digit Led can identify tension or stress, LCD interface clear,
easy to read.
3. Units:N-K GF- LBF optional and can be automatically swap.
4. LCD Liquid crystal display with backlighting, Can be used in the
environment of the insufficient light.
5. Single determination, can read tensile and press peak value, and
can be manually reset.
6. With the function of limit and overload in downtime.
7. Contain thermal printers, can automatically output test results.
8. Can store 10 test reference points automatically calculate the
average, automatic fetching max force,fracture strength value.
Corresponding standard:
Applicable industry:
It is widely used in wire and cable, hardware, electronic and
electrical equipment, packaging, printing, medical equipment, auto
parts, textiles and leather, clothing, shoes, rubber and plastic
products, colleges and universities; research laboratories;
inspection arbitration, technical supervision departments and many
other industries, it is the basic equipment for quality management
and physical tested.
Technical parameters:
| Model | ZL-8002C |
| Max. load | 2000KG US CELTRON high precision sensor |
| Capacity | 100,200,500,1000,2000kg |
| Unite | Kg,lb,N |
| Measuring system | Load cell+ZL-2000 |
| Load measurement accuracy | Load cell+ZL-2000, displayer±0.5%(5%-100% of FS) |
| Resolution | 1/25000 |
| Max. test space | About 1000mm (Excluding fixture, support custom) |
| Effective width of test | 380mm |
| Test speed | 50-300mm/min, STEPLESS speed regulation and 5 constant
speed(support custom) |
| Sampling rate | 200times/sec |
| Set breakpoints ratio range | 0~99%, can be set according different specimen, to Implement
different location of the stop condition. |
| Safety device | Overload and emergency stop device, up and down stroke limit device |
| Dynamical system | AC motor + HOLIP frequency converter |
| Work rate | 200W (According to load) |
| Volume | 1100×700×2000mm |
| Weight | 200kg |
| Power Supply | 220V/50Hz |
