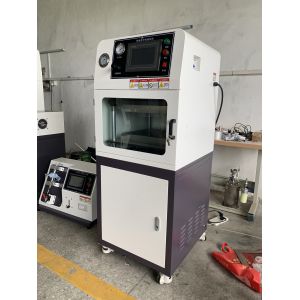

Rubber Compression Molding Machine Plate Vulcanization Press
Tester
Equipment features
1. The control system adopt computer automatic control
2. Use Germany SIEMENS, Japan Mitsubishi PLC touching screen
3. Adopt temperature transmitter and pressure transmitter,
Temperature in the vulcanizer is evenly, balance control pressure
4. According to the customers’ requirement to machining and process
5. Opening door adopt safety interlock, have passed the
identification by Provincial Technical Supervision.
ZL-3022
Laboratory Hydraulic Press Tester; Lab Ho...
Technical Parameters:
| Capacity | 10~50ton ( Option ) |
| Temp. Range | Room temp. ～300℃ |
| Temp. Controller | PLC touch screen, the value indicate output |
| Timer | LED display,time range 0.1S～99min～9.9hr |
| Heating type | Electrical Heating module |
| Hot pressure plate | 300×300mm ( can be customized) |
| Cold pressure plate | 300×300mm ( can be customized) |
| Distance of pressure plate | 100mm |
| Pressure material | SKD chromium-molybdenum alloy |
| Pressure surface | Mirror chrome plated |
| Cooling temperature scope | Room temp. ～＋5℃ |
| Cooling type | Tap water cooling/compressor cooling water(optional) |
| Oil pressure system | The proportion hydraulic pressure current capacity loop circuit
control |
| system, the GPY oil pump driver high performance
electroencephalographic |
| matching high accuracy non resistance piston of oil cylinder carry |
| out constant speed rate control mode, can p reelection one, two |
| times pressure and time. |
| Oil cylinder stroke | Max 200mm |
| Oil cylinder speed | 11mm/s |
| Pressure gauge | 0～350kg/sq.cm |
| power | 10.6HP |
| Dimension W×D×H | 1000×500×1500 mm |
| Power supply | 3∮,AC380V,20A |
| Weight | About 658kg |
We are Zhongli Instrument Technology Co., Ltd, an instrument
Expert, Headquartered in Dongguan, Guangdong, China.since 2007,
specialized in manufacturing Lab testing equipments.
Throughout its more than 13 years of history, Our products have
sold well in the Europe, America and Southeast Asia market and
total 80 countries these years,especially favored by European and
American countries.
Our equipments cover a wide range of industries, such as rubber and
plastics industry, food industry, packaging industry, electronics
industry, etc.and are suitable for all scientific research units,
quality inspection institutions and academic fields.
In addition to standard machines, our R&D team can customize it
for you. Just tell us your needs and we will make you satisfied.
