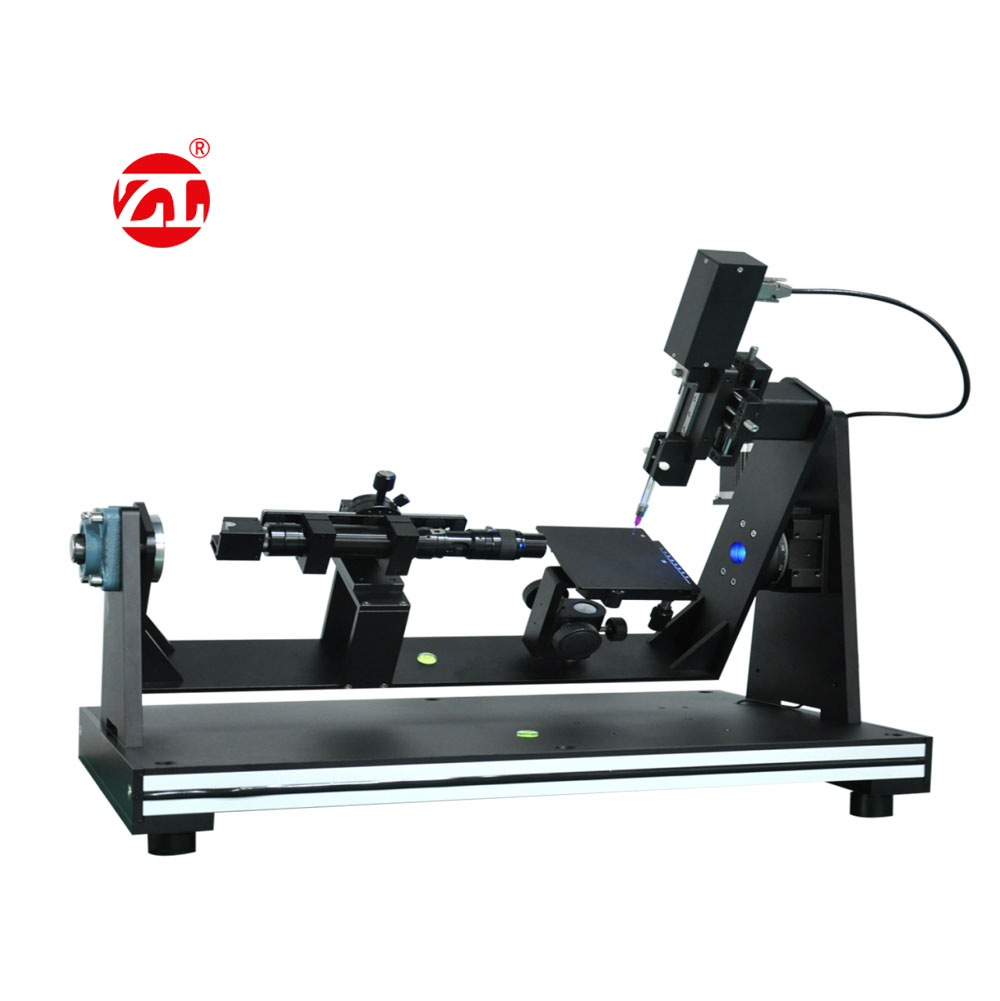

Precision Automatic Water Drop Angle Tester Contact Angle Measuring Instrument

Precision Automatic Water Drop Angle Tester Contact Angle Measuring Instrument

Introduce:

Contact angle measurement was used for measuring the contact angle of a liquid on a solid, which wettability of liquid on the solid.

Contact angle measurement can measure the contact angle of various liquids of various materials.

Contact angle measurement for petroleum, printing and dyeing, pharmaceutical, paint, mineral processing industries such as scientific research and production has a very important role.

Specifications:

Equipment Specifications
Device Host
Dimension	840mm(L)×480mm(W)×720mm(H)
Main Machine Weight	26KG
Adjustment Of The Whole machine	Whole machine level test/adjustment
Power Supply
Voltage	100～240VAC
Power	150W
Frequency	50/60HZ
Space
Platform Size	120mm×180mm
Maximum Specimen	250×∞×60mm
Sample Stage Adjustment	Three-dimensional manual adjustment (can be upgraded automatically)
Sample Stage Adjustment	Front and back adjustment manually, stroke 60mm, accuracy 0.1mm Left and right adjustment manually, stroke 35mm, precision 0.1mm Up and down adjustment manually, travel 80mm, accuracy 0.1mm
Camera System
Maximum Image	5000(H) x 4000(V)
Maximum Frame Rate	200fps (upgradable to higher frame rates)
Sensor	SONY 1/1.8"
Spectrum	B&W/color
ROI	Custom
Display Line Width	Custom
Exposure Time	Custom
Power Supply	5 VDC USB Interface
Transmission	USB3 Vision
Microscope Head
Focal Length	130mm±5mm (zoom adjustment)
Magnification	10x
Angle Of View Adjustment	±10°
Resolution Scale	4~14um
Acquisition System Adjustment	Overhead/upward/horizontal view
